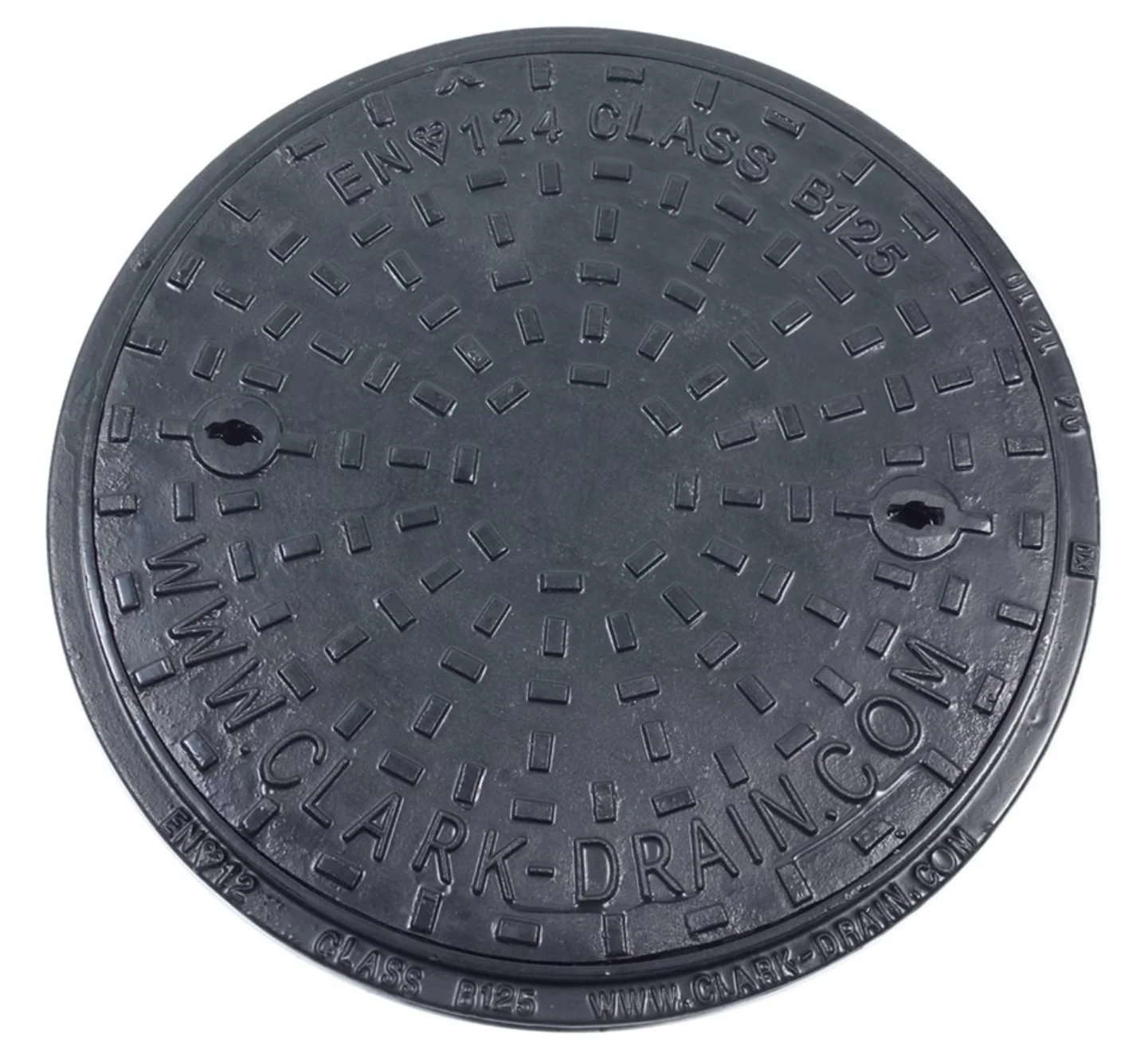

Clark Drain Circular Manhole Cover & Frame - 450mm—
$69.16
The Story
The Clark Drain 450mm circular ductile cover and frame is designed for use with underground inspection chamber systems, providing a strong and durable access cover for pedestrian and light vehicular areas. Manufactured from spheroid graphite iron and finished with a black surface coating, it offers a hard-wearing solution for protecting chamber openings while maintaining access for inspection and maintenance.
Rated to B125 load class, this cover and frame is suitable for applications such as shopping precincts, driveways, and pavements. It also features integral lifting key holes for easier access and is designed to fit the majority of 450mm diameter chambers on the market.
Key Benefits
• Strong ductile iron construction
• B125 load rating
• Suitable for shopping precincts, driveways, and pavements
• Integral lifting key holes for easier access
• Fits the majority of 450mm diameter chambers
• Supplied with a black surface coating
• Durable and hard-wearing design
• Suitable for underground inspection chamber systems
Specifications
• Brand: Clark Drain
• Product type: Circular ductile cover and frame
• Clear opening: 450mm diameter
• Overall dimensions: 550mm diameter
• Depth: 30mm
• Material: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
• Load rating: B125
• Standard: BSI Kitemark certified to BS EN124-2:2015
Applications
Suitable for use as an access cover on underground inspection chamber systems in pedestrian and light vehicular areas. Ideal for installations in shopping precincts, driveways, and pavements where a durable and reliable chamber cover is required.
Description
The Clark Drain 450mm circular ductile cover and frame is designed for use with underground inspection chamber systems, providing a strong and durable access cover for pedestrian and light vehicular areas. Manufactured from spheroid graphite iron and finished with a black surface coating, it offers a hard-wearing solution for protecting chamber openings while maintaining access for inspection and maintenance.
Rated to B125 load class, this cover and frame is suitable for applications such as shopping precincts, driveways, and pavements. It also features integral lifting key holes for easier access and is designed to fit the majority of 450mm diameter chambers on the market.
Key Benefits
• Strong ductile iron construction
• B125 load rating
• Suitable for shopping precincts, driveways, and pavements
• Integral lifting key holes for easier access
• Fits the majority of 450mm diameter chambers
• Supplied with a black surface coating
• Durable and hard-wearing design
• Suitable for underground inspection chamber systems
Specifications
• Brand: Clark Drain
• Product type: Circular ductile cover and frame
• Clear opening: 450mm diameter
• Overall dimensions: 550mm diameter
• Depth: 30mm
• Material: Spheroid Graphite Iron Grade EN-GJS-500-7 to BS EN 1563:2011
• Load rating: B125
• Standard: BSI Kitemark certified to BS EN124-2:2015
Applications
Suitable for use as an access cover on underground inspection chamber systems in pedestrian and light vehicular areas. Ideal for installations in shopping precincts, driveways, and pavements where a durable and reliable chamber cover is required.
