Double Sealed Aluminium Recessed Manhole Covers 60mm Depth

The Alusthetic DS-Line range offers premium-quality, double-sealed aluminium manhole covers designed for durability, performance, and a discreet finish. Manufactured from high-grade extruded aluminium and tested to BS:EN124 standards, these covers combine strength with a sleek, modern appearance – making them suitable for both domestic and public exterior applications.

Engineered with a reinforced mesh tray, they maintain the rigidity of the infill material while withstanding harsh weather conditions. The double-seal system – a neoprene base seal and a built-in T-rubber side seal – prevents odours, dirt, and water ingress, ensuring a clean and effective solution for exterior drainage access points.

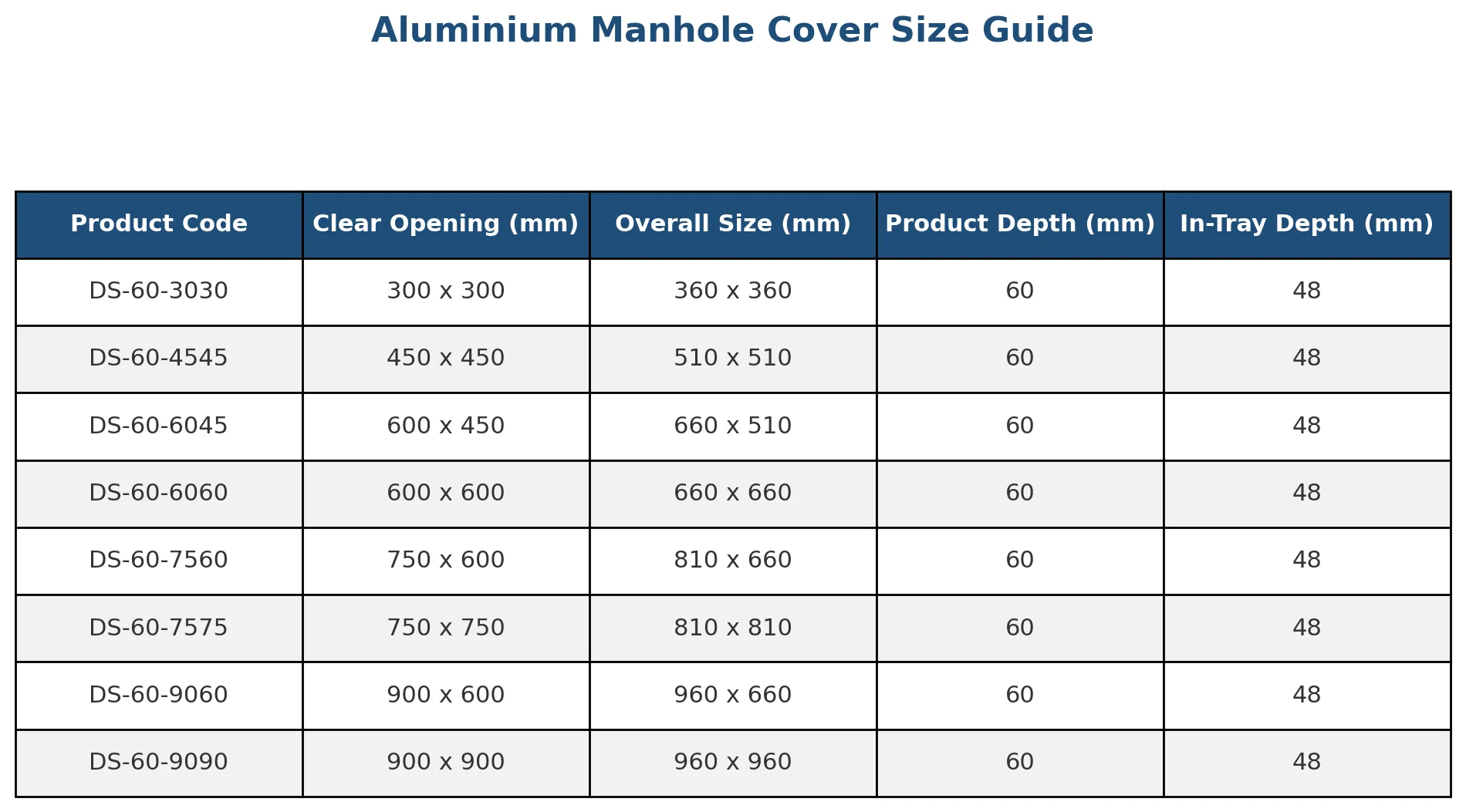

Product Code	Clear Opening (mm)	Overall Size (mm)	Product Depth (mm)	In-Tray Depth (mm)
DS-60-3030	300 x 300	360 x 360	60	48
DS-60-4545	450 x 450	510 x 510	60	48
DS-60-6045	600 x 450	660 x 510	60	48
DS-60-6060	600 x 600	660 x 660	60	48
DS-60-7560	750 x 600	810 x 660	60	48
DS-60-7575	750 x 750	810 x 810	60	48
DS-60-9060	900 x 600	960 x 660	60	48
DS-60-9090	900 x 900	960 x 960	60	48



Key Features & Benefits
•    Double-sealed system – prevents odours, water ingress, and dirt build-up
•    High-grade extruded aluminium frame – strong, lightweight, and corrosion-resistant
•    Reinforced mesh tray – maintains rigidity of infill material
•    Tested to BS:EN124 standard – reliable performance in domestic and public use
•    Discrete, aesthetic finish – blends seamlessly with surroundings
•    Recommended for exterior applications

Product Specifications
•    Material: High-grade extruded aluminium
•    Seal Type: Double-sealed (base neoprene + T-rubber side seal)
•    Certification: BS:EN124 compliant
•    Application: Exterior use – patios, driveways, public pathways, landscaping
•    Finish: Discreet recessed design for infill
•    Sizes: Available in a full range of internal and external dimensions (see variants)
