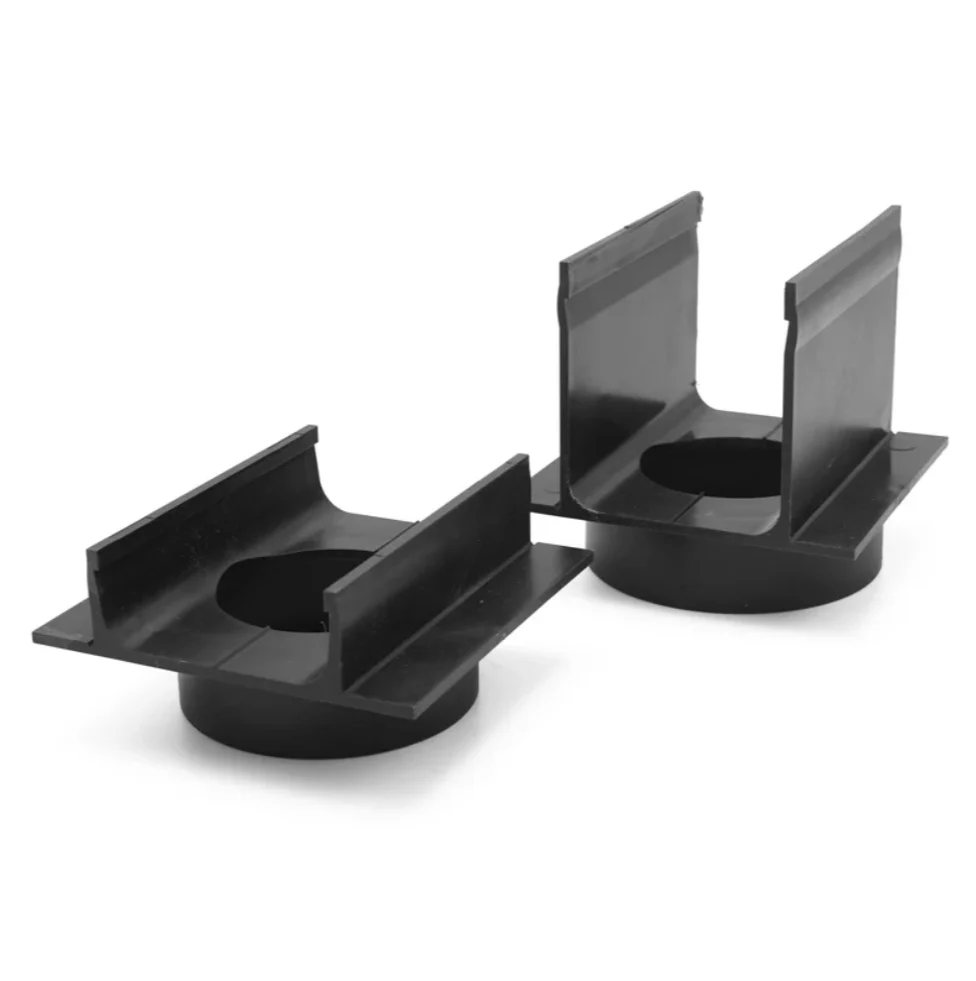

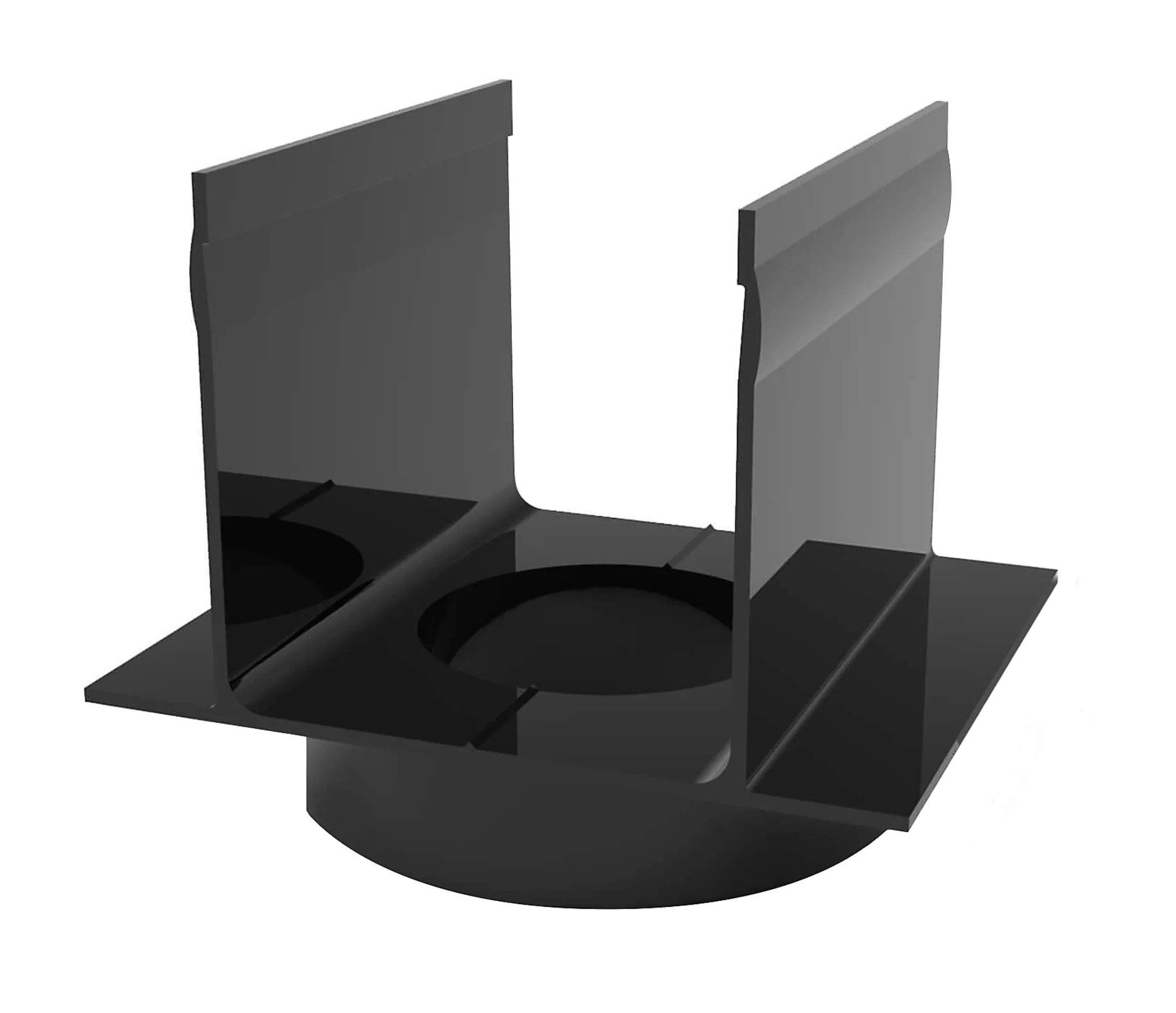

Alusthetic Threshold Channel Drain Connector Outlet

The Alusthetic Threshold Channel Drain Outlet is designed to provide Alusthetic channel drain with a reliable water outlet connection. Sitting flush to the floor with no overlap, it ensures a seamless, discreet finish that blends perfectly into your drainage system.

This connector is engineered for use with Alusthetic Threshold Drain and Grate channels (65mm width x 100mm depth x 1m length).

•    Standard connector – 85mm diameter outlet

Ideal for domestic applications such as patios, thresholds, and walkways, this component is fully UKCA and CE marked and certified to Load Class A15 (BS EN 1433:2002). It can withstand loads of up to 15kN on soft ground and 25kN in concrete, making it a dependable choice for non-vehicular areas.

For a watertight seal, all PVC components can be joined using a PVC solvent weld.

Features & Benefits:
•    Connects two 1m Alusthetic drain channels with integrated water outlet
•    Flush design for a neat, discreet finish
•    Durable PVC construction for long-lasting performance
•    Load Class A15 certified – suitable for patios, paths, and thresholds
•    UKCA and CE marked for compliance and peace of mind
•    Easy installation with PVC solvent weld

Product Specifications:
•    Material: PVC
•    Channel compatibility: 65mm (W) x 100mm (D) x 1m (L)
•    Outlet size: 85mm
•    Load rating: A15 – 15kN (soft ground), 25kN (concrete)
•    Certification: UKCA & CE marked
