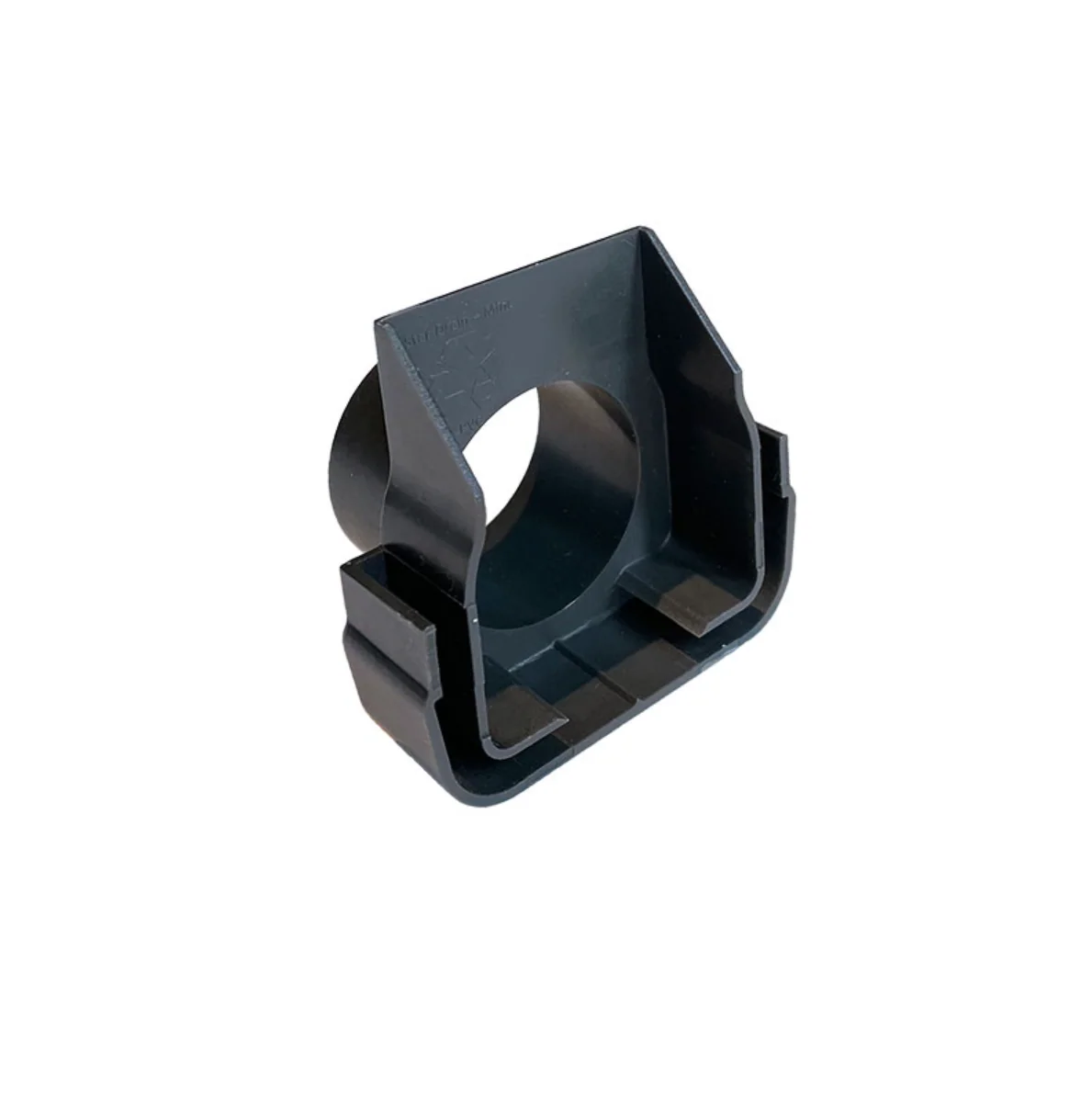

Alusthetic Low Profile Threshold Channel End Cap with Outlet

The Alusthetic Low Profile End Cap with Outlet is designed to seal the end of a Low Profile Alusthetic Threshold Drain channel while allowing water to be safely discharged through an integrated outlet. It provides a neat, secure termination to your drainage system while ensuring controlled water flow in the desired direction.

This low-profile end cap features a 50mm diameter outlet, making it easy to connect your channel system to pipework or couplings. Manufactured from durable extruded PVC, it combines strength with a lightweight design, ensuring quick and straightforward installation.

Like the rest of the Alusthetic system, it is fully UKCA and CE marked and certified to Load Class A15 (BS EN 1433:2002). This means it can withstand up to 15kN in soft ground and around 25kN in concrete, making it ideal for domestic applications such as patios, thresholds, and pedestrian walkways.

For a watertight finish, simply connect using a PVC solvent weld.

Features & Benefits:
•    Provides a secure end seal for Low Profile Threshold Drain channels
•    Integrated 50mm outlet for directing water into pipes or couplings
•    Slim, low-profile design for a discreet finish
•    Strong yet lightweight PVC construction
•    Quick and simple installation with PVC solvent weld
•    Ideal for patios, thresholds, walkways, and garden areas
•    Certified to Load Class A15 – 15kN (soft ground), 25kN (concrete)
•    UKCA & CE marked for compliance and quality assurance

Product Specifications:
•    Material: PVC
•    Compatible Channel Size: 65mm (W) x 60mm (D) x 1000mm (L)
•    Outlet Size: 50mm diameter
•    Load rating: A15 – 15kN (soft ground), 25kN (concrete)
•    Certification: UKCA & CE marked
